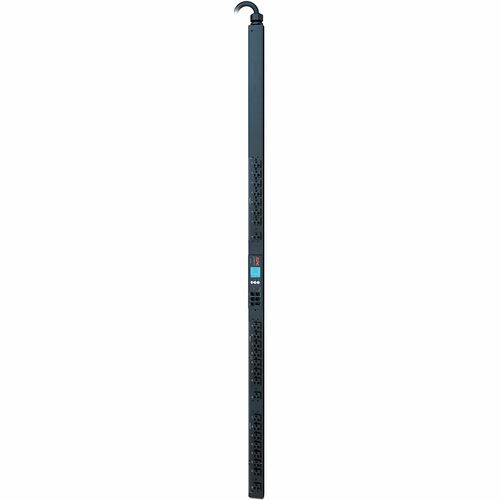

APC by Schneider Electric Switched Rack PDU Switched - NEMA L21-20P - 24 x NEMA 5-20R - 208 V AC - 5760 W - 6 ft Cord Length - 0U - Horizontal/Vertical - Rack-mountable - Tower

Item #: APWAP8962 List Price $2,002.91
Add to Cart
Ships via UPS
  • Allow 10 days for delivery
  • Ships direct from Manufacturer
  • Non Returnable

Product Description

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
  • On/off functionality to allow power recycling, equipment reboot and restricts unauthorized use of individual outlets
  • Power sequencing delays let you customize the order of powering attached equipment
  • Prioritizes load-shedding to avoid circuit overload during power recovery
  • Settable alarms to indicate potential circuit overloads

Product Details

General Information

ManufacturerSchneider Electric SA
Manufacturer Part NumberAP8962
Manufacturer Website Addresshttp://www.schneider-electric.com
Brand NameAPC by Schneider Electric
Product NameSwitched Rack PDU
Product TypePDU

Technical Information

PDU TypeSwitched
Plug/Connector TypeNEMA L21-20P
Receptacle TypeNEMA 5-20R
Receptacle Detail24 x NEMA 5-20R

Power Description

Input Voltage208 V AC
Output Voltage120 V AC
Power Rating (VA)5760 VA
Input Current20 A
Circuit BreakerYes

Management

Management
  • Web
  • SNMP
  • Telnet

Physical Characteristics

Product ColorBlack
Mounting OrientationHorizontal/Vertical
Mount TypeRack-mountable
Form FactorTower
Rack Height0U
Number of Cord/Cable1
Cord Length6 ft
Height70.5"
Width2.2"
Depth1.7"
Weight (Approximate)15.37 lb

Miscellaneous

Package Contents
  • Switched Rack PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • Certifications & StandardscUL Listed
    Environmentally FriendlyYes
    Environmental CertificationRoHS
    Mercury FreeYes
    UPC731304307549
    Packaged Quantity1
    Quantity Per Selling Unit1
    Special OrderY

    Warranty

    Limited Warranty2 Year
    Additional Warranty Information2 years repair or replace
