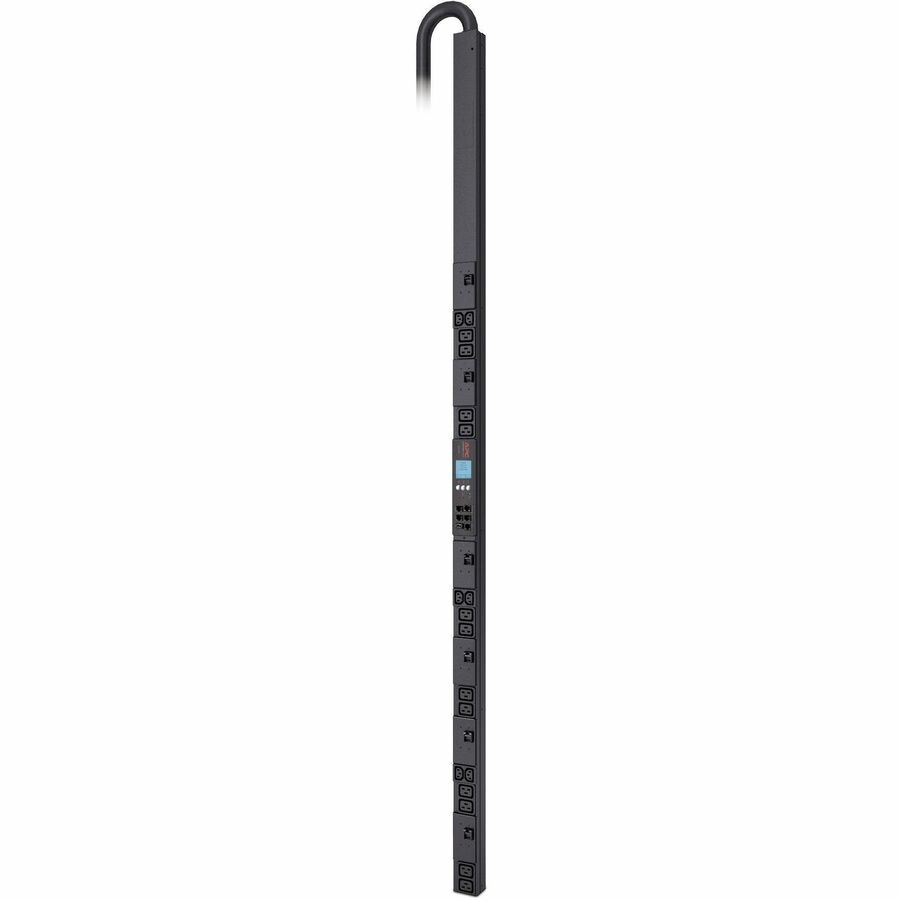

APC by Schneider Electric Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19 Metered - IEC 60309 60A (3P+PE) - 6 x IEC 60320 C13, 12 x IEC 60320 C19 - 208 V AC - 17.30 kW - 0U - Rack-mountable

Item #: APWAP8866 List Price $3,863.24
Add to Cart
Ships via UPS
  • Allow 10 days for delivery
  • Ships direct from Manufacturer
  • Non Returnable

Product Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

  • Meters power to enable optimal energy and protect circuits
  • Fitted with multiple outlets for distribution of electrical power
  • LCD to monitor current, power and voltage measurements
  • Uses 6' long power cord to easily power
  • Locking IEC receptacles to ensure locking power cord compatibility to reduce accidental disconnection

Product Details

General Information

ManufacturerSchneider Electric SA
Manufacturer Part NumberAP8866
Manufacturer Website Addresshttp://www.schneider-electric.com
Brand NameAPC by Schneider Electric
Product LineMetered Rack
Product NameRack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
Product TypePDU

Technical Information

PDU TypeMetered
Plug/Connector TypeIEC 60309 60A (3P+PE)
Receptacle Type
  • IEC 60320 C13
  • IEC 60320 C19
Receptacle Detail
  • 6 x IEC 60320 C13
  • 12 x IEC 60320 C19
Protection TypeOverload Protection

Power Description

Input Voltage208 V AC
Output Voltage208 V AC
Power Rating (VA)17.30 kVA

Management

Management

Protocols:

  • SNMP
  • Telnet
  • Web

Physical Characteristics

Product ColorBlack
Mount TypeRack-mountable
Rack Height0U
Number of Cord/Cable1
Cord Length6 ft
Height72"
Width2.2"
Depth2"
Weight (Approximate)20.94 lb

Miscellaneous

Package Contents
  • Rack PDU 2G, Metered, ZeroU, 17.2kW, 208V, (6) C13 & (12) C19
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • Additional Information

    Input Connections: IEC 309 60A 3P+PE

    Certifications & StandardscUL Listed
    Environmentally FriendlyYes
    Environmental CertificationRoHS
    Mercury FreeYes
    UPC731304289906
    Packaged Quantity1
    Quantity Per Selling Unit1
    Special OrderY

    Warranty

    Limited Warranty2 Year
    Additional Warranty Information2 years repair or replace
