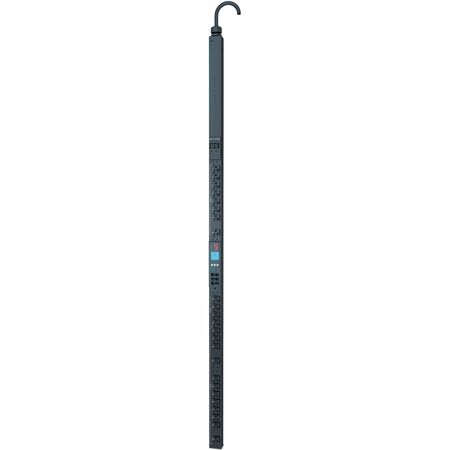

APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU Metered-by-Outlet - NEMA L5-30P - 24 x NEMA 5-20R - 120 V AC - 2880 W - 0U - Vertical - Rack-mountable - Tower

Item #: APWAP8632 List Price $2,818.28
Add to Cart
Ships via UPS
  • Allow 10 days for delivery
  • Ships direct from Manufacturer
  • Non Returnable

Product Description

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.

  • Provides customizable power controls and power metering
  • Fitted with multiple outlets for distribution of electrical power
  • Uses 10' long power cord to easily power
  • Meets Green Premium label to deliver compliance with the latest regulations, transparency on environmental impacts and low carbon dioxide emissions

Product Details

General Information

ManufacturerSchneider Electric SA
Manufacturer Part NumberAP8632
Manufacturer Website Addresshttp://www.schneider-electric.com
Brand NameAPC by Schneider Electric
Product NameMetered-by-Outlet with Switching Rack PDU
Product TypePDU

Technical Information

PDU TypeMetered-by-Outlet
Plug/Connector TypeNEMA L5-30P
Receptacle TypeNEMA 5-20R
Receptacle Detail24 x NEMA 5-20R
Protection TypeOverload Protection

Power Description

Input Voltage120 V AC
Output Voltage
  • 100 V AC
  • 120 V AC
Power Rating (VA)2880 VA
Input Current30 A

Management

Management
  • Web
  • SNMP
  • Telnet

Physical Characteristics

Product ColorBlack
Mounting OrientationVertical
Mount TypeRack-mountable
Form FactorTower
Rack Height0U
Number of Cord/Cable1
Cord Length10 ft
Height72"
Width2.2"
Depth2"
Weight (Approximate)17.71 lb

Miscellaneous

Package Contents
  • Metered-by-Outlet with Switching Rack PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • Certifications & Standards
    • cUL Listed
    • FCC Part 15 Class A
    • ICES-003
    • PSE
    • UL 60950-1
    • UL Listed
    Environmental Certification
    • RoHS
    • REACH
    UPC731304307457
    Packaged Quantity1
    Quantity Per Selling Unit1
    Special OrderY

    Warranty

    Limited Warranty2 Year
