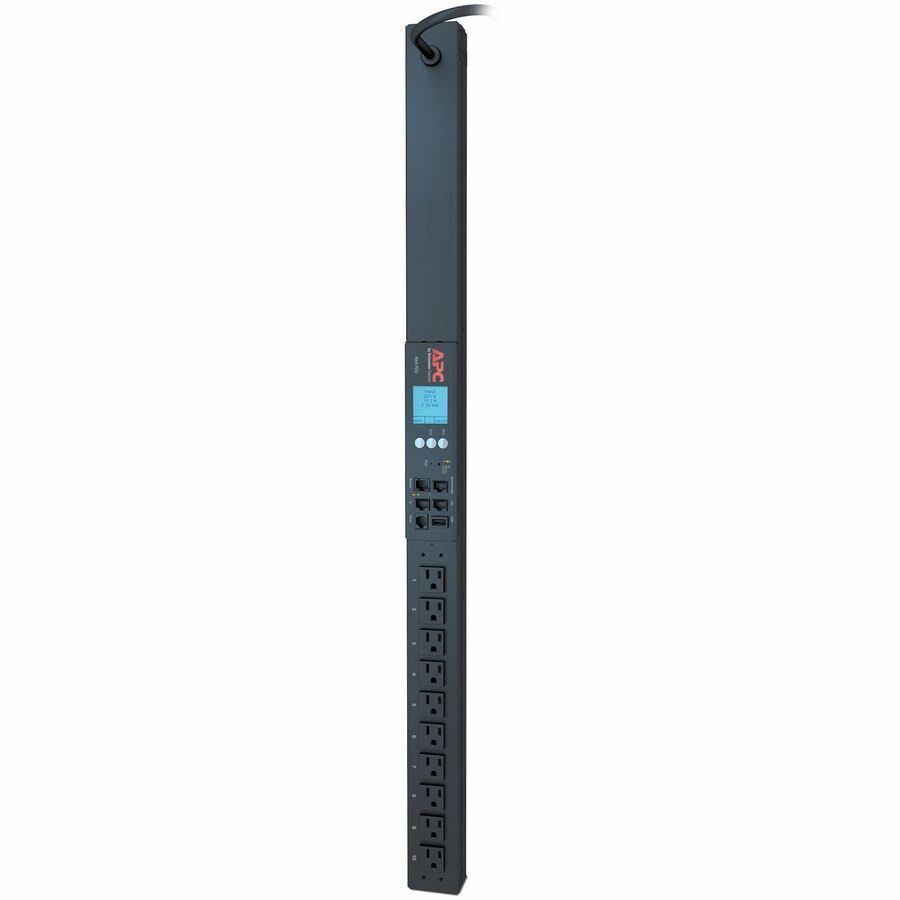

APC by Schneider Electric Metered Rack PDU Metered - NEMA 5-15P - 10 x NEMA 5-15R - 100 V AC - 1440 W - 9.84 ft Cord Length - 0U - Horizontal/Vertical - Rack-mountable

Item #: APWAP8831 List Price $968.30
Add to Cart
Ships via UPS
  • Allow 10 days for delivery
  • Ships direct from Manufacturer
  • Non Returnable

Product Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

  • Meters power to enable optimal energy and protect circuits
  • Fitted with multiple outlets for distribution of electrical power
  • LCD to monitor current, power and voltage measurements
  • Uses 10' long power cord to easily power
  • Meets Green Premium label to deliver compliance with the latest regulations, transparency on environmental impacts and low carbon dioxide emissions

Product Details

General Information

ManufacturerSchneider Electric SA
Manufacturer Part NumberAP8831
Manufacturer Website Addresshttp://www.schneider-electric.com
Brand NameAPC by Schneider Electric
Product NameMetered Rack PDU
Product TypePDU

Technical Information

PDU TypeMetered
Plug/Connector TypeNEMA 5-15P
Receptacle TypeNEMA 5-15R
Receptacle Detail10 x NEMA 5-15R
Protection TypeCircuit Protection

Power Description

Input Voltage100 V AC
Output Voltage100 V AC
Power Rating (VA)1440 VA
Input Current15 A
Circuit BreakerYes

Management

Management
  • Web
  • SNMP
  • Telnet

Physical Characteristics

Product ColorBlack
Mounting OrientationHorizontal/Vertical
Mount TypeRack-mountable
Rack Height0U
Number of Cord/Cable1
Cord Length9.84 ft
Height35.5"
Width2.2"
Depth1.7"
Weight (Approximate)8.99 lb

Miscellaneous

Package Contents
  • Metered Rack PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • Certifications & StandardscUL Listed
    Environmentally FriendlyYes
    Environmental CertificationRoHS
    Mercury FreeYes
    UPC731304307327
    Packaged Quantity1
    Quantity Per Selling Unit1
    Special OrderY

    Warranty

    Limited Warranty2 Year
    Additional Warranty Information2 years repair or replace
