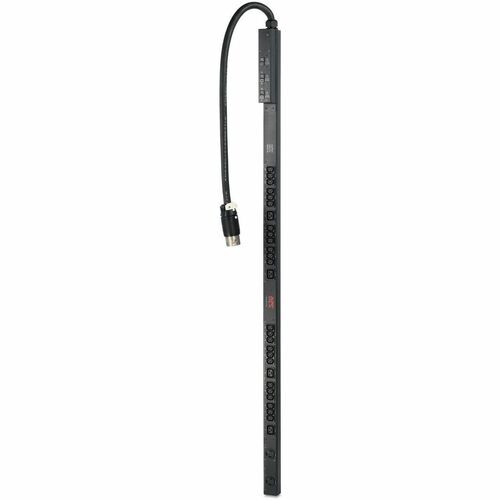

APC Basic Rack 14.4kVA PDU 24 x IEC 320-C13, 4 x IEC 320-C19, 2 x NEMA L6-30R - 14.4kVA - Zero U Rack-mountable

Item #: APWAP7569 List Price $1,901.87
Add to Cart
Ships via UPS
  • Allow 10 days for delivery
  • Ships direct from Manufacturer
  • Non Returnable

Product Description

  • Low Cost Power Distribution
  • Multi-branch Power Input
  • Toolless Mounting Capability
  • Vertical Mounting Capability
  • Resettable circuit breakers to enable quick recovery from overload events
  • Distributes power to devices in the rack
  • Fitted with multiple outlets for distribution of electrical power
  • Uses 3' long power cord to easily power
  • Meets Green Premium label to deliver compliance with the latest regulations, transparency on environmental impacts and low carbon dioxide emissions

Product Details

General Information

ManufacturerSchneider Electric SA
Manufacturer Part NumberAP7569
Manufacturer Website Addresshttp://www.schneider-electric.com
Brand NameAPC by Schneider Electric
Product LineBasic Rack
Product NameBasic Rack 14.4kVA PDU
Product TypePDU

Technical Information

PDU TypeBasic
Plug/Connector TypeHubbell CS8365C
Receptacle Type
  • IEC 60320 C13
  • IEC 60320 C19
  • NEMA L6-30R
Receptacle Detail
  • 24 x IEC 60320 C13
  • 4 x IEC 60320 C19
  • 2 x NEMA L6-30R
Protection TypeOverload Protection

Power Description

Input Voltage208 V AC
Output Voltage208 V AC
Power Rating (VA)14.40 kVA

Physical Characteristics

Product ColorBlack
Mount TypeRack-mountable
Rack Height0U
Cord Length3 ft
Height70"
Width2.2"
Depth3.7"
Weight (Approximate)16.14 lb

Miscellaneous

Package Contents
  • Basic Rack 14.4kVA PDU
  • Cord retention bracket(s)
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Toolless mounting kit
  • Compatibility
    • cUL Listed
    • CSA
    • METI Denan
    • UL 60950
    • UL Listed
    Certifications & StandardscUL Listed
    Environmentally FriendlyYes
    Environmental CertificationRoHS
    UPC731304240754
    Packaged Quantity1
    Quantity Per Selling Unit1
    Special OrderY

    Warranty

    Limited Warranty2 Year
    Additional Warranty Information2 years repair or replace
